當前位置：首頁 > 產品中心 > 車用保險絲|直流保險絲 >

ANL-大號叉栓式保險絲，大叉栓保險絲，叉栓式保險絲，汽車總成保險絲

產品信息

產品類別：車用保險絲|直流保險絲

關鍵詞：ANL-大號叉栓式保險絲

點擊率：

發布時間：2019-07-02 09:54:11

全國服務熱線：13549460265

立即咨詢

產品詳情

大叉栓式汽車保險絲--FYMF/ANL

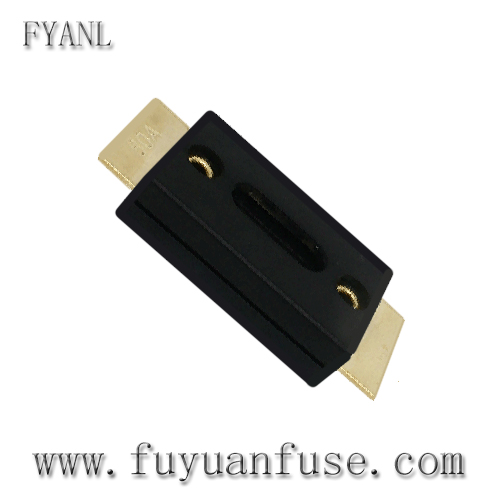

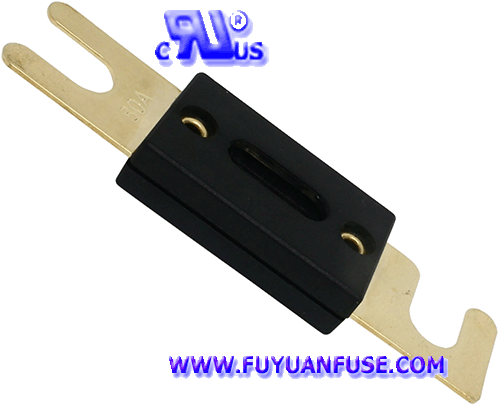

Physical view

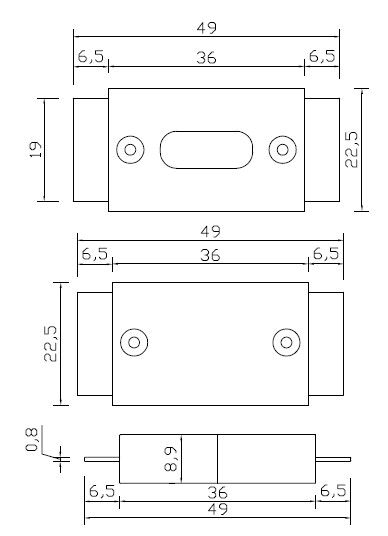

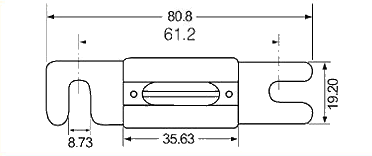

Dimensions (mm)

Specifications
Housing: Out of thermoplastic (UL 94-V0, heat-resistant) Visible melting element
Terminal: Copper alloy, gal. Sn 2 x M8 bolts, Distance 51 mm
Mounting Torque: 12.0 Nm +/- 1Nm
Breaking Capacity: 1000A, 125V DC
Complies with: ISO 8820-5 UL 248 Special Purpose Fuses

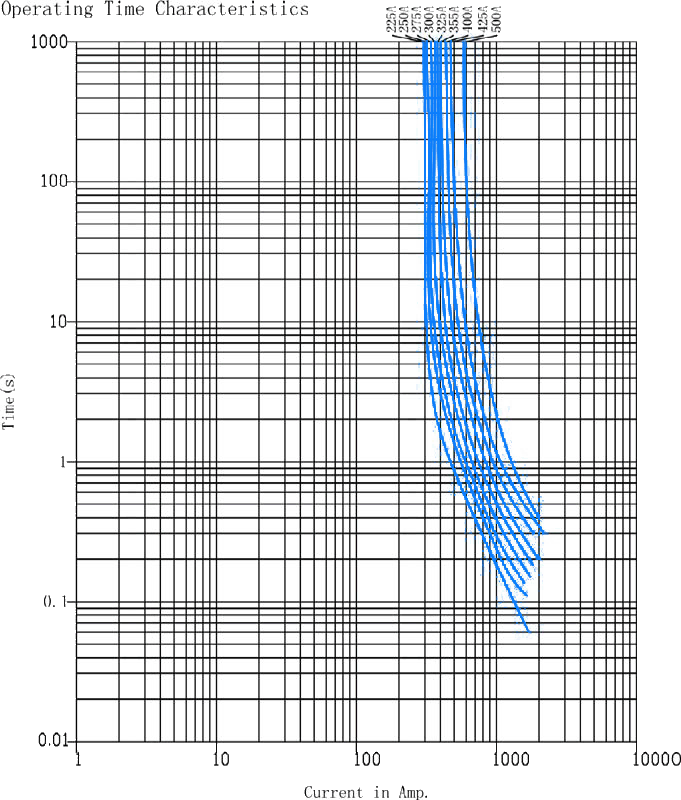

Time-Current Characteristics

% of Rating	Opening Time Min / Max (s)
% of Rating	100A - 250A	300A-500A
75	– / –	– / –
100	4 h / –	4 h / –
135	120 s / 1,800 s	– / –
200	1 s / 15 s	1 s / 15 s
350	0.300 s / 5 s	0.500 s / 5 s
600	0.100 s / 1 s	0.100 s / 1 s

Ratings

TYPE	Rating Current(A)	Typ Voltage drop	Rating Voltage(V)
FYMF/ANL-20	20A	≤150mV	32V/58V/63V
FYMF/ANL-40	40A	≤150mV	32V/58V/63V
FYMF/ANL-60	60A	≤130mV	32V/58V/63V
FYMF/ANL-80	80A	≤130mV	32V/58V/63V
FYMF/ANL-100	100A	≤110mV	32V/58V/63V
FYMF/ANL-125	12	≤110mV	32V/58V/63V
FYMF/ANL-130	130A	≤110mV	32V/58V/63V
FYMF/ANL-150	150A	≤100mV	32V/58V/63V
FYMF/ANL-175	17	≤100mV	32V/58V/63V
FYMF/ANL-200	200A	≤100mV	32V/58V/63V
FYMF/ANL-225	22	≤90mV	32V/58V/63V
FYMF/ANL-250	250A	≤90mV	32V/58V/63V
FYMF/ANL-275	27	≤90mV	32V/58V/63V
FYMF/ANL-300	300A	≤90mV	32V/58V/63V
FYMF/ANL-350	350A	≤90mV	32V/58V/63V
FYMF/ANL-400	400A	≤90mV	32V/58V/63V
FYMF/ANL-500	500A	≤90mV	32V/58V/63V
