應用范圍
產品廣泛適用于額定工作電壓較高的電路中，如微電機、揚聲器、變壓器、安防設備、工控、測試測量設備、衛星接收系統、玩具行業等領域。

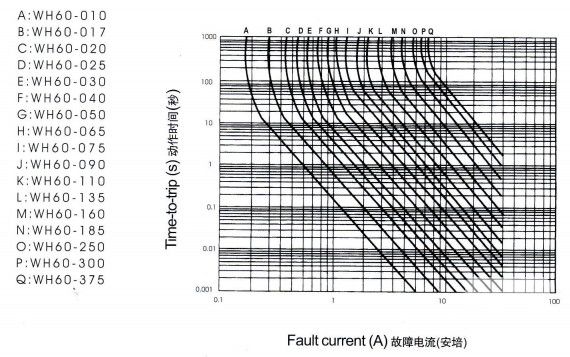

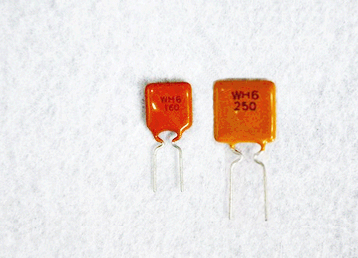

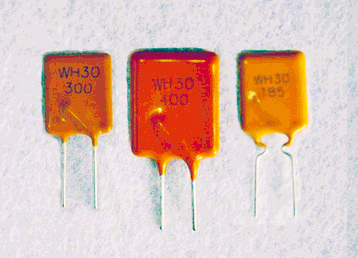

產品圖片
電器特征與產品尺寸
|
Model |
Ih |
It |
Vmax |
Imax |
Rmin |
Rmax |
Product Dimension(mm)大產品尺寸 |
|||||
|
型號 |
A |
A |
V |
A |
Ω |
Ω |
Style |
A |
B |
C |
D |
Lead |
|
WH60-005 |
0.05 |
0.10 |
60 |
40 |
10.0 |
25.0 |
F2 |
6.0 |
8.5 |
5.1 |
3.1 |
0.5 |
|
WH60-010 |
0.10 |
0.20 |
60 |
40 |
3.00 |
7.50 |
F2 |
6.0 |
8.5 |
5.1 |
3.1 |
0.5 |
|
WH60-017 |
0.17 |
0.34 |
60 |
40 |
1.80 |
5.80 |
F2 |
6.0 |
8.5 |
5.1 |
3.1 |
0.5 |
|
WH60-020 |
0.20 |
0.40 |
60 |
40 |
1.50 |
3.30 |
F2 |
6.0 |
8.5 |
5.1 |
3.1 |
0.5 |
|
WH60-025 |
0.25 |
0.50 |
60 |
40 |
1.00 |
2.20 |
F2 |
6.0 |
8.5 |
5.1 |
3.1 |
0.5 |
|
WH60-030 |
0.30 |
0.60 |
60 |
40 |
0.70 |
1.55 |
F2 |
6.7 |
10.7 |
5.1 |
3.1 |
0.5 |
|
WH60-040 |
0.40 |
0.80 |
60 |
40 |
0.50 |
1.10 |
F1 |
7.2 |
14.2 |
5.1 |
3.1 |
0.5 |
|
WH60-050 |
0.50 |
1.00 |
60 |
40 |
0.35 |
0.85 |
F1 |
7.5 |
14.5 |
5.1 |
3.1 |
0.5 |
|
WH60-065 |
0.65 |
1.30 |
60 |
40 |
0.30 |
0.65 |
F1 |
9.1 |
16.1 |
5.1 |
3.1 |
0.5 |
|
WH60-075 |
0.75 |
1.50 |
60 |
40 |
0.25 |
0.55 |
F1 |
9.8 |
16.8 |
5.1 |
3.1 |
0.5 |
|
WH60-090 |
0.90 |
1.80 |
60 |
40 |
0.20 |
0.45 |
F1 |
11.0 |
18.0 |
5.1 |
3.1 |
0.5 |
|
WH60-110 |
1.10 |
2.20 |
60 |
40 |
0.15 |
0.33 |
F2 |
12.5 |
17.5 |
5.1 |
3.1 |
0.8 |
|
WH60-135 |
1.35 |
2.70 |
60 |
40 |
0.12 |
0.27 |
F2 |
14.2 |
19.2 |
5.1 |
3.1 |
0.8 |
|
WH60-160 |
1.60 |
3.20 |
60 |
40 |
0.09 |
0.22 |
F2 |
16.3 |
21.3 |
5.1 |
3.1 |
0.8 |
|
WH60-185 |
1.85 |
3.70 |
60 |
40 |
0.08 |
0.18 |
F2 |
17.4 |
22.4 |
5.1 |
3.1 |
0.8 |
|
WH60-250 |
2.50 |
5.00 |
60 |
40 |
0.055 |
0.11 |
F2 |
21.6 |
26.6 |
10.2 |
3.1 |
0.8 |
|
WH60-300 |
3.00 |
6.00 |
60 |
40 |
0.045 |
0.09 |
F2 |
24.8 |
29.8 |
10.2 |
3.1 |
0.8 |
|
WH60-375 |
3.75 |
7.50 |
60 |
40 |
0.035 |
0.08 |
F2 |
27.0 |
32.0 |
10.2 |
3.1 |
0.8 |
|
WH60-500 |
5.00 |
10.00 |
60 |
40 |
0.030 |
0.07 |
F2 |
28.5 |
33.5 |
10.2 |
3.1 |
0.8 |
符號定義 Definition
環境溫度及電流值折減比率表
符號Sign
說明
Definition
Ih
在25℃環境溫度下的大 工作電流
Hold current-maximum current at which the device will not trip at 25℃
It
在25℃環境溫度下啟動保護的小電流
Trip current-minimum current at which the device will always trip at 25℃
Vmax
大工作電壓
Maximum voltage at which the device will not trip
Vmaxi
在阻斷狀態下所承受的大電壓
Maximum voltage device can withstand without damage at it rated current
Imax
能承受的大電流
Maximum fault current device can withstand without damage at rated voltage
Rmin
工作前的初始小阻值
Minimum device resistance at 25℃ prior to tripping
Rmax
工作前的初始大阻值
Maximum device resistance at 25℃ prior to tripping
Figure
圖示
The Figure of WHPTC
Lead
導線尺寸
Lead diameter
Discount rate of ambient temperature and current
| WH Series | -20℃ | 0℃ | 25℃ | 30℃ | 40℃ | 50℃ | 60℃ | 70℃ | 85℃ |
| WH6 | 130% | 115% | 100% | 91% | 83% | 77% | 68% | 61% | 52% |
| WH16 | 132% | 120% | 100% | 96% | 88% | 80% | 71% | 61% | 47% |
| WH30 | 130% | 115% | 100% | 91% | 83% | 77% | 68% | 61% | 52% |
| WH60 | 136% | 119% | 100% | 90% | 81% | 72% | 63% | 54% | 40% |
| WH130 | 136% | 119% | 100% | 92% | 81% | 72% | 63% | 54% | 40% |
| WH250 | 132% | 117% | 100% | 91% | 85% | 77% | 68% | 61% | 48% |
| WH600 | 138% | 119% | 100% | 92% | 83% | 73% | 64% | 55% | 42% |
